The product is highly resistant to substances such as oil and chemicals. The prepaid scratch card assures smooth operation.2.
It has an extra-thin thickness of structure for great recognition capability. Owing to a long-term destination for Sunlanrfid business, we are engaged in providing a quality approved gamut of prepaid vip card.3.
The product is highly reliable without static breakdown problems. Products and services are provided by us at the best possible rate with best Quality.4.
The product has a very large chip data capacity, Sunlanrfid Carries A Wide Selection Of prepaid card, prepaid smart card In Stock At Very Competitive Pricing To Customers.5.
The product stands out for its great flexibility and suppleness, We Are Provide The Latest Design payment card, rfid prepaid card, reloadable prepaid cards For Customers In The Global Market.6.
The product comes with a free sample service, Sunlanrfid Guarantees To Offer Competitive Prices And Professional Service For Our prepaid credit card, reloadable debit card.7.
When you receive our prepaid phone card and find any damage, you can apply for our free replacement service. It can be applied widely including access control, transportation and shopping centers8.
Shenzhen Sunlanrfid Technology Co., Ltd is committed to transforming leading technologies into better and more competitive prepaid bank cards. It is very durable with no deformation issues9.
We value best prepaid cards just as we value our customers. The product requires no contact between the card and the reader
❈ Material： PVC/PET/PETG/ABS
❈ Size： 85.6mm*53.98mm*0.80±0.04mm( ISO14443,7816, CR80)or on your demand
❈ Other Available Chips
|MIFARE® Classic 1K||ISO14443A||1KB|
|MIFARE® Classic 4K||ISO14443A||4KB|
|MIFARE® Plus S/X/EV1 2K/4K||ISO14443A||2KB/4KB|
|MIFARE® Plus SE||ISO14443A||1KB|
|MIFARE® DESFire EV1||ISO14443A||2KB/4KB/8KB/256|
|MIFARE® DESFire EV2||ISO14443A||2KB/4KB/8KB|
|MIFARE Ultralight C||ISO14443A||192 Byte|
|MIFARE Ultralight® EV1||ISO14443A||USER 384 EEOPOM 640|
|MIFARE Ultralight®||ISO14443A||EEPROM 512 USER 384|
|MIFARE Ultralight Nano||ISO14443A||40 Bit|
For more information , Please contact with us now!

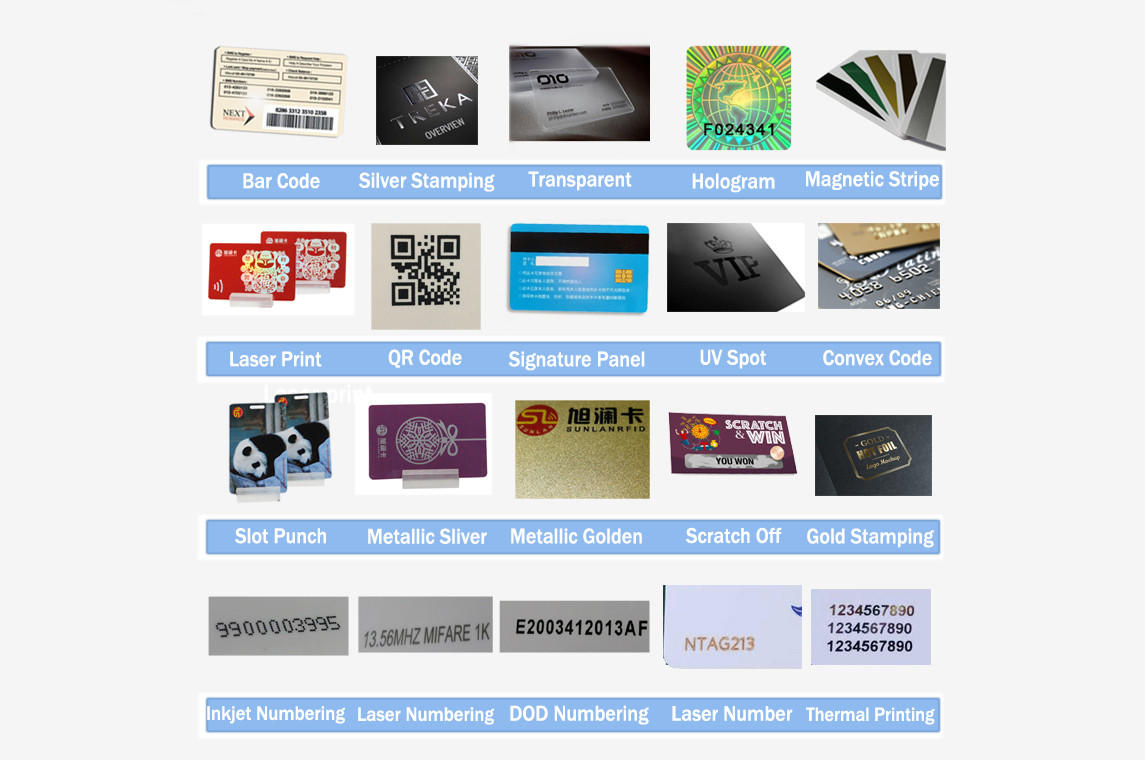

◇ Magnetic Stripe(Loco:300oe/650oe,Hico:2750oe/4000oe)
◇ Bar code(1D:128,39,EAN,UPC 2D:49,PDF419,Maxi)
◇ Off-set or silkscreen printing (full color)
◇ Signature panel and scratch panel
◇ Inkjet/stamping sequential number printing
◇ Logo printing ,embossing, UV
◇ Hot/laser stamping (gold ,silver) ,Matting or frosting
◇ Hologram logo sticker or Hologram overlay
◇ Carton: 5000pcs(51cm*23.5cm*33.5cm)
◇ Small box:200pcs or on your demand
◇ Weight(reference): 6kg/1000pcs(without chip)
Access Control, Transportation, Time and Attendance, Parking, Shopping Center.
❈ MIFARE DESFire EV1 (MF3ICD81), a Common Criteria (EAL4+) certified product, is ideal
for service providers wanting to use secure multi-application smart cards in public
transport schemes, access managment or closed-loop e-payment applications. It is fully
complies with the requirements for fast and highly secure data transmission, flexible
memory organization and interoperability with existing infrastructure.
❈ MIFARE DESFire EV1 is based on open global standards for both air interface and
cryptographic methods. It is compliant to all 4 levels of ISO/IEC 14443A and uses optional
ISO/IEC 7816-4 commands.
❈ Featuring an on-chip backup management system and the mutual three pass
authentication, a MIFARE DESFire EV1 card can hold up to 28 different applications and
32 files per application. The size of each file is defined at the moment of its creation,
making MIFARE DESFire EV1 a truly flexible and convenient product.
❈ an automatic anti-tear mechanism is available for all file types, which
guarantees transaction oriented data integrity. With MIFARE DESFire EV1, data transfer
rates up to 848 kbit/s can be achieved, allowing fast data transmission.
❈ The main characteristics of this device are denoted by its name “DESFire”: DES indicates
the high level of security using a 3DES or AES hardware cryptographic engine for
enciphering transmission data and Fire indicates its outstanding position as a fast,
innovative, reliable and secure IC in the contactless proximity transaction market.
❈ MIFARE DESFire EV1 brings many benefits to end users. Cardholders can experience
convenient contactless ticketing while also having the possibility to use the same device
for related applications such as payment at vending machines, access control or event
ticketing. In other words, the MIFARE DESFire EV1 silicon solution offers enhanced
consumer-friendly system design, in combination with security and reliability.
❈MIFARE DESFire EV1 delivers the perfect balance of speed, performance and cost
efficiency. Its open concept allows future seamless integration of other ticketing media
such as smart paper tickets, key fobs, and mobile ticketing based on Near Field
Communication (NFC) technology. It is also fully compatible with the existing MIFARE
reader hardware platform. MIFARE DESFire EV1 is your ticket to contactless systems.
RF interface: ISO/IEC 14443 Type A
◇ Contactless transmission of data and powered by the RF-field (no battery needed)
◇ Operating distance: up to 100 mm (depending on power provided by the PCD and
◇ Operating frequency: 13.56 MHz
◇ Fast data transfer: 106 kbit/s, 212 kbit/s, 424 kbit/s, 848 kbit/s
◇ High data integrity: 16/32 bit CRC, parity, bit coding, bit counting
◇ True deterministic anticollision
◇ 7 bytes unique identifier (cascade level 2 according to ISO/IEC 14443-3 and option for
◇ Uses ISO/IEC 14443-4 protocol
ISO/IEC 7816 compatibility
◇ Supports ISO/IEC 7816-3 APDU message structure
◇ Supports ISO/IEC 7816-4 INS code ‘A4’ for SELECT FILE
◇ Supports ISO/IEC 7816-4 INS code ‘B0’ for READ BINARY
◇ Supports ISO/IEC 7816-4 INS code ‘D6’ for UPDATE BINARY
◇ Supports ISO/IEC 7816-4 INS code ‘B2’ for READ RECORDS
◇ Supports ISO/IEC 7816-4 INS code ‘E2’ for APPEND RECORD
◇ Supports ISO/IEC 7816-4 INS code ‘84’ for GET CHALLENGE
◇ Supports ISO/IEC 7816-4 INS code ‘88’ for INTERNAL AUTHENTICATE
◇ Supports ISO/IEC 7816-4 INS code ‘82’ for EXTERNAL AUTHENTICATE
◇ 2 kB or 4 kB or 8 kB NV-Memory
◇ Data retention of 10 years
◇ Write endurance typcial 500 000 cycles
◇ Flexible file system
◇ Up to 28 applications simultaneously on one PICC
◇ Up to 32 files in each application (standard data file, back-up data file, value file, linear
record file and cyclic record file)
◇ File size is determined during creation
◇ Common Criteria Certification: EAL4+ (Hardware and Software)
◇ Unique 7 bytes serial number for each device
◇ Mutual three pass authentication
◇ Mutual authentication according to ISO/IEC 7816-4
◇ 1 card master key and up to 14 keys per application
◇ 1 card master key and up to 14 keys per application
◇ Hardware AES using 128-bit keys featuring key version, data authenticity by 8 byteCMAC
◇ Data encryption on RF-channel
◇ Authentication on application level
◇ Hardware exception sensors
◇ Self-securing file system
◇ Backward compatibility to MF3ICD40: 4 byte MAC, CRC 16
Shenzhen Sunlanrfid Technology Co., Ltd has successfully created its independent brand Sunlanrfid in global market. - Shenzhen Sunlanrfid Technology Co., Ltd has established strategic partnerships with many prepaid card giants. - Supported by plenty of fund, Shenzhen Sunlanrfid Technology Co., Ltd can be devoted to R&D and technology and keeps improving performance of payment card. 2.
Time And Tide Wait For No Man. Sunlanrfid's prepaid credit card, prepaid scratch card, prepaid vip card Are Available In A Wide Variety Of Choice. Ask! - Lack Of Knowledge Is Darker Than Night. With Excellent Performance And Low Prices, The prepaid phone card, prepaid smart card, rfid prepaid card We Exported Are Welcomed By Oversea' Markets. Check Now! - Adversity Reveals Genius, Fortune Conceals It. Sunlanrfid Has The Ability To Offer A Unique Flexibility Of prepaid bank cards, reloadable prepaid cards, reloadable debit card With A Multitude Of Choices. Inquiry! 3.
The Sunlanrfid Promise: We are 'always true to our word'! Get price! - Any Question, Please Feel Free To Contact Us, With Selected Material And Well Design, Shenzhen Sunlanrfid Technology Co., Ltd 's best prepaid cards, best prepaid debit cardsS Are Popular With Our Customers, Welcome Your Inquiry, For More Details About Our Product, Send Us Your Inquiry, Inquire! - At Shenzhen Sunlanrfid Technology Co., Ltd . our customer are very important to us; therefore we offer the best solution to our customers equipment needs. Get price!
